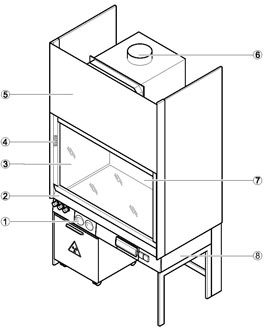

Radio-Isotope Fume Cupboard
1 Differential pressure gauge
2 Sash with handle
3 Worktop
4 FAZ or AC control panel
5 Removable fascia panel
6 Extract air spigot integrated in
filter housing
7 Baffle with scaffold points
8 H-frame with pushed in underbench
unit with support and
service panel
Intended use
- Protective device for the user, tested in acc. with DIN 25466
- Extraction during work with radioactive substances if increased requirements for radiation protection apply
- Protection from incorporation, contamination and external radiation exposure
- Extraction of fumes, aerosols and dust from the internal workspace to prevent dangerous amounts of pollutants from escaping into the laboratory
- To prevent the formation of dangerous potentially explosive atmospheres in the internal workspace
- Protection from splashes of hazardous substances in the internal workspace
- Protection from flying particles, bodies or parts escaping from the internal workspace
- Fume cupboards constructed in acc. with DIN 25466 are normally not permitted for use with microorganisms
- Not suitable for openly breaking down chemicals
